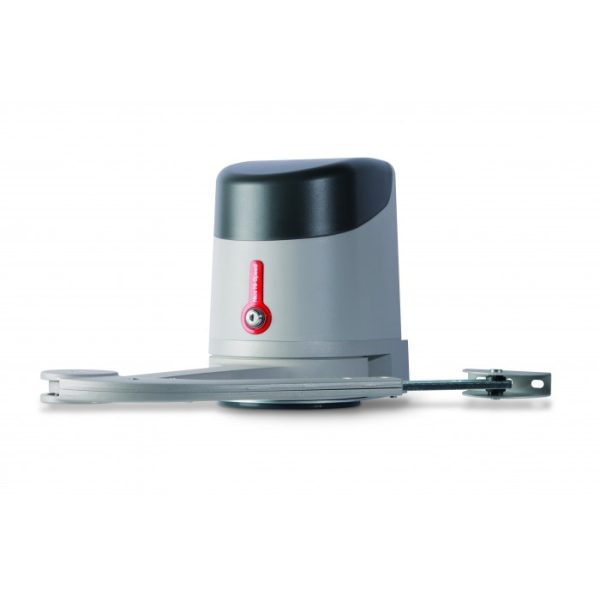

Nice HYKEHS-DKit 24Vdc high speed articulated arm kit for swing gates up to 3m

Description

Ultra-powerful and reliable – Thanks to the torque of 500Nm and encoder technology, for millimetres precision and reliability.

Safe movement – Dual technology obstacle detection

Sturdy – Thanks to the housing in aluminium with a polyester paint finish, resistant to atmospheric agents

Best of Both – Two irreversible 24 Vdc versions with limit switches on opening and closing: with built-in control unit and without control unit

Practical and quick installation – The articulated arm is adjustable in length for maximum flexibility

Simple and precise limit switch adjustment – Mechanical stops and micro-metric adjustment screws

No blackout – With the optional batteries (PS124) housed inside the gear motor



Built-in control unit

• Simple programming via a single key
• Self-learning of opening and closing limit positions
• Automatic fault diagnostics Pause time programming
• Pedestrian pass door Deceleration on opening and closing
• Obstacle detection with dual technology
• Provision for connection of latest generation resistive sensitive safety edges



Technical information:

Max gate weight- 270 kg, Max speed- 2rpm, Motor voltage 24 vdc, IP rating- 54, work cycle 40.
