AES EL00C-RAD-KLT E-loop Commercial Kit With Trans 200 For Presence Mode

Description

Product Description:

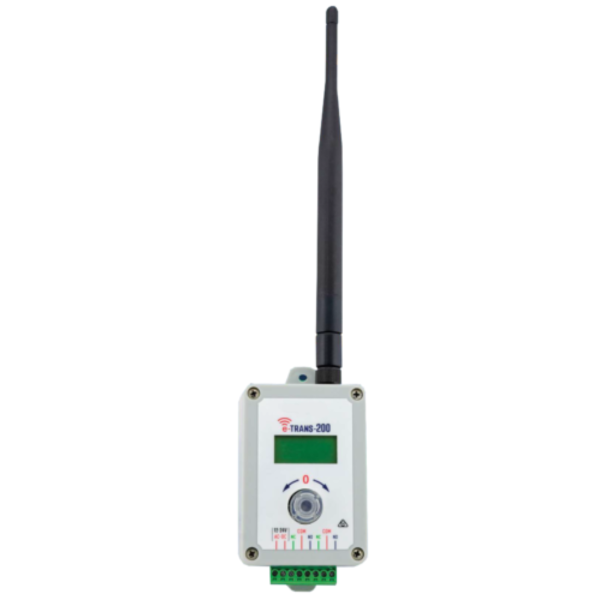

All Eloop range require a 12V-1A-PSU for power supply, can not be wired direct to the gate automation control panel for power. EL00C-RAD presence only commercial wireless detector with 200 Transceiver. Manage access for multi-unit complexes with up to 200 units.

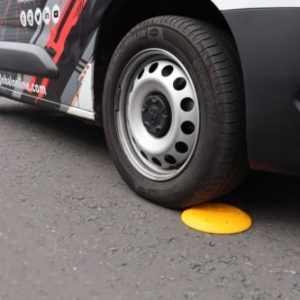

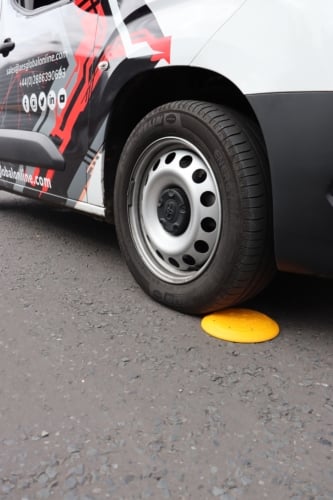

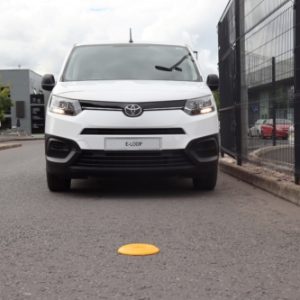

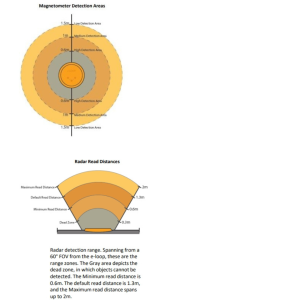

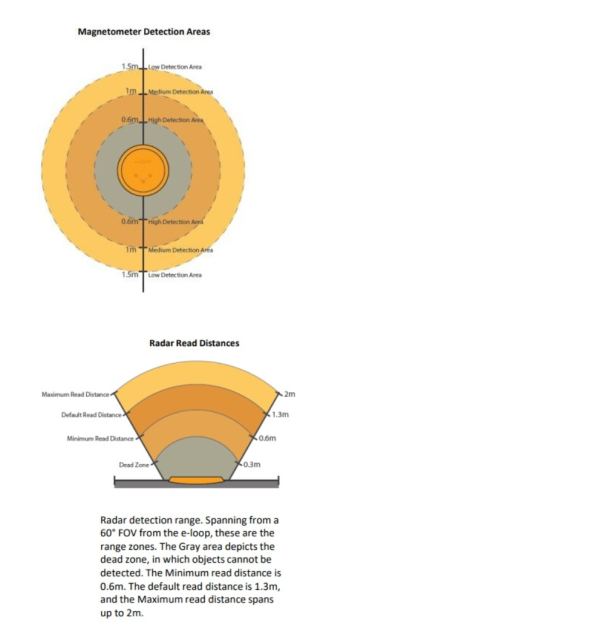

The Radar sensors can detect vehicles that are stopped above the e-loop. The added radar utilises two-way radio communication protocol for reliable operation. Once the magnetometer sensor detects an oncoming vehicle, the transceiver relay will be latched and confirmation will be sent back to the e-loop. If the magnetic field drops below the set threshold, the radar will check if a vehicle is present. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver will send a confirmation to the e-loop.



If the confirmation is missed, multiple attempts will be made to ensure A safe operation. Radar settings can be adjusted using the e-diagnostics remote. Settings that can be changed include; Dead zone, sensor distance, sensitivity, magnetic field release level, confirmation mode



Installation in 3 simple steps

1. Code in e-Loop.
2. Secure e-Loop to the driveway.
3. Calibrate e-Loop and you’re ready to operate in less than 15 minutes. Save many hours of installation time compared to wired loop systems.



Quick and easy installation.

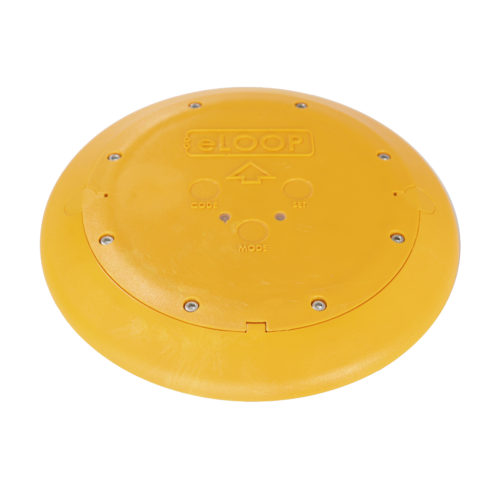

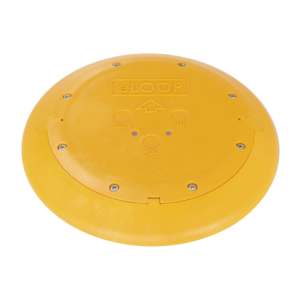

• Compact profile – only 26mm high x 200mm diameter.
• Not affected by ground movement.

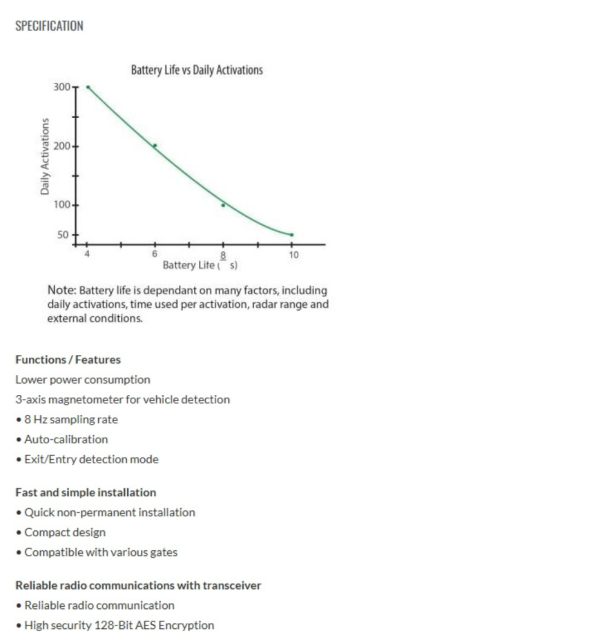

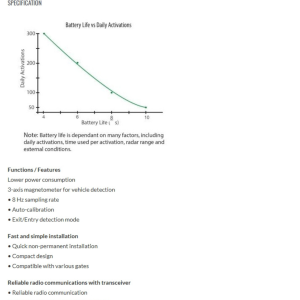

• 10600 mA battery giving up to 10 years battery life
• High security 128 bit encryption.
• Static load capacity 2500kg.
• Range up to 50 meters.
• Made of high impact plastic
